Normal Distribution Transform

A Grid-Based Approach to Scan Matching


Instructor: Hasan A. Poonawala

Mechanical and Aerospace Engineering
University of Kentucky, Lexington, KY, USA

Topics:
NDT Representation
Gaussian Modeling
Optimization-Based Alignment

Lesson Overview

  1. Motivation: Why an alternative to ICP?
  2. NDT Representation: Discretizing space into Gaussian cells
  3. Alignment Algorithm: Optimization over continuous transformation
  4. Comparison: NDT vs ICP trade-offs

Key insight: Represent the target as a distribution, not discrete points

Motivation

Limitations of ICP

Recall ICP alternates between:

  1. Finding nearest neighbors (discrete correspondences)
  2. Solving for transformation

Problems:

  • Nearest neighbor is expensive: O(nm)O(nm) or O(nlogm)O(n \log m)
  • Correspondences change discontinuously
  • Cost function is not smooth

The NDT Idea

Instead of point-to-point matching:

Convert the target point cloud into a probability density

  • Divide space into cells (grid)
  • Fit a Gaussian distribution to points in each cell
  • Measure how well transformed source points fit the Gaussians

Result: Locally smooth cost function amenable to gradient-based optimization

NDT Representation

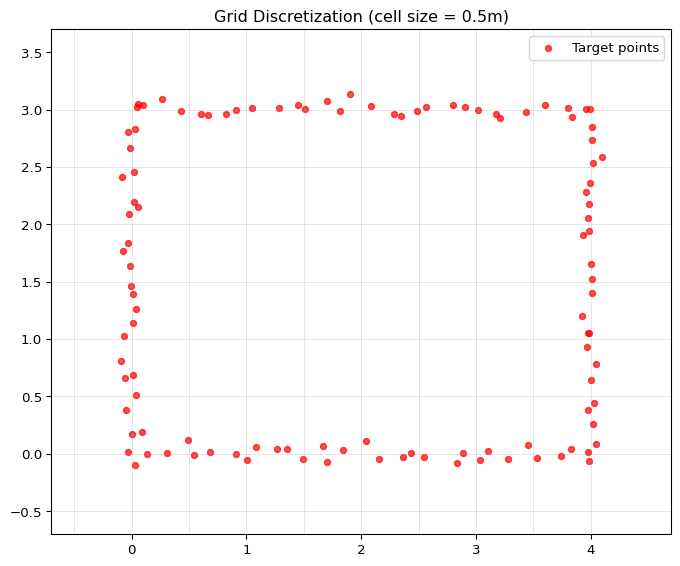

Step 1: Discretize Space

Overlay a regular grid on the target point cloud:

Code
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.patches import Rectangle

np.random.seed(42)

# Generate target points (room-like environment)
wall1 = np.vstack([np.linspace(0, 4, 30), np.zeros(30)])
wall2 = np.vstack([np.zeros(25), np.linspace(0, 3, 25)])
wall3 = np.vstack([np.linspace(0, 4, 30), 3*np.ones(30)])
wall4 = np.vstack([4*np.ones(25), np.linspace(0, 3, 25)])

target = np.hstack([wall1, wall2, wall3, wall4])
target += 0.05 * np.random.randn(*target.shape)

fig, ax = plt.subplots(figsize=(8, 6))
ax.scatter(target[0], target[1], c='red', s=20, alpha=0.7, label='Target points')

# Draw grid
cell_size = 0.5
for x in np.arange(-0.5, 4.5, cell_size):
    ax.axvline(x, color='gray', alpha=0.3, linewidth=0.5)
for y in np.arange(-0.5, 3.5, cell_size):
    ax.axhline(y, color='gray', alpha=0.3, linewidth=0.5)

ax.set_xlim(-0.7, 4.7); ax.set_ylim(-0.7, 3.7)
ax.set_aspect('equal'); ax.set_title(f'Grid Discretization (cell size = {cell_size}m)')
ax.legend()
plt.tight_layout()
plt.show()



Step 2: Compute Cell Statistics

For each cell kk containing points {p1,p2,…,pn}\{p_1, p_2, \ldots, p_n\}:

Mean (centroid): μk=1n∑i=1npi \mu_k = \frac{1}{n} \sum_{i=1}^{n} p_i

Covariance matrix: Σk=1n−1∑i=1n(pi−μk)(pi−μk)T \Sigma_k = \frac{1}{n-1} \sum_{i=1}^{n} (p_i - \mu_k)(p_i - \mu_k)^T

Each occupied cell now has a 2D Gaussian: 𝒩(μk,Σk)\mathcal{N}(\mu_k, \Sigma_k)

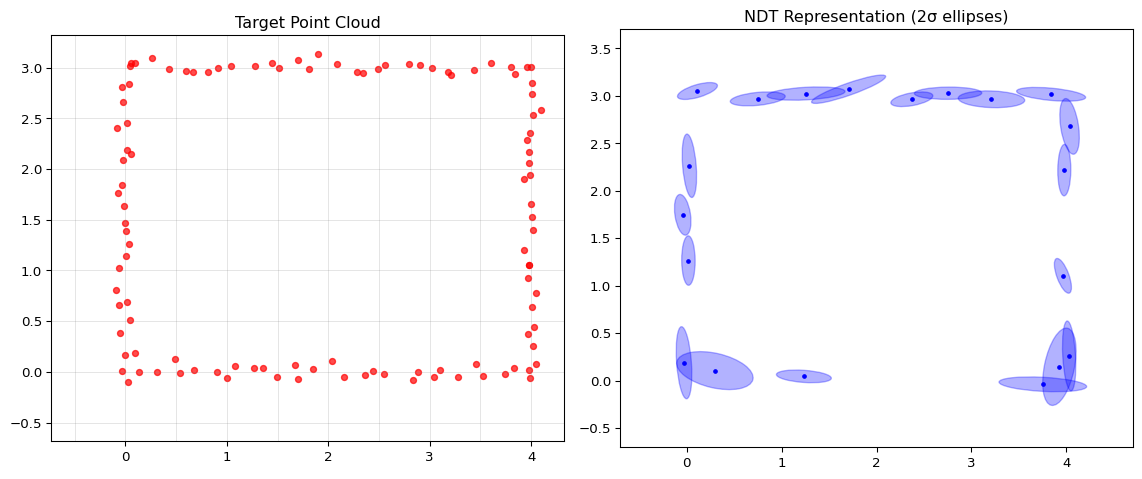

Visualizing the NDT

Code
from matplotlib.patches import Ellipse

def compute_ndt(points, cell_size, x_range, y_range):
    """Compute NDT representation of point cloud."""
    cells = {}

    for i in range(points.shape[1]):
        x, y = points[:, i]
        # Determine cell indices
        cx = int(np.floor((x - x_range[0]) / cell_size))
        cy = int(np.floor((y - y_range[0]) / cell_size))
        key = (cx, cy)

        if key not in cells:
            cells[key] = []
        cells[key].append(points[:, i])

    # Compute statistics for each cell
    ndt = {}
    for key, pts in cells.items():
        pts = np.array(pts).T  # 2 x n
        if pts.shape[1] >= 3:  # Need at least 3 points for covariance
            mean = pts.mean(axis=1)
            centered = pts - mean.reshape(2, 1)
            cov = (centered @ centered.T) / (pts.shape[1] - 1)
            # Add small regularization for numerical stability
            cov += 0.001 * np.eye(2)
            ndt[key] = {'mean': mean, 'cov': cov, 'n_points': pts.shape[1]}

    return ndt

def draw_ellipse(ax, mean, cov, n_std=2, **kwargs):
    """Draw covariance ellipse."""
    eigenvalues, eigenvectors = np.linalg.eigh(cov)
    angle = np.degrees(np.arctan2(eigenvectors[1, 0], eigenvectors[0, 0]))
    width, height = 2 * n_std * np.sqrt(eigenvalues)
    ellipse = Ellipse(mean, width, height, angle=angle, **kwargs)
    ax.add_patch(ellipse)

# Compute NDT
cell_size = 0.5
ndt = compute_ndt(target, cell_size, (-0.5, 4.5), (-0.5, 3.5))

fig, axes = plt.subplots(1, 2, figsize=(12, 5))

# Left: Points with grid
axes[0].scatter(target[0], target[1], c='red', s=20, alpha=0.7)
for x in np.arange(-0.5, 4.5, cell_size):
    axes[0].axvline(x, color='gray', alpha=0.3, linewidth=0.5)
for y in np.arange(-0.5, 3.5, cell_size):
    axes[0].axhline(y, color='gray', alpha=0.3, linewidth=0.5)
axes[0].set_title('Target Point Cloud')
axes[0].set_aspect('equal')

# Right: NDT representation
for key, cell in ndt.items():
    draw_ellipse(axes[1], cell['mean'], cell['cov'], n_std=2,
                 fill=True, alpha=0.3, color='blue', edgecolor='blue')
    axes[1].plot(cell['mean'][0], cell['mean'][1], 'b.', markersize=5)

axes[1].set_xlim(-0.7, 4.7); axes[1].set_ylim(-0.7, 3.7)
axes[1].set_title('NDT Representation (2σ ellipses)')
axes[1].set_aspect('equal')

plt.tight_layout()
plt.show()

The Gaussian Model

Each cell’s Gaussian defines a probability density:

p(x|μk,Σk)=12π|Σk|1/2exp(−12(x−μk)TΣk−1(x−μk)) p(x | \mu_k, \Sigma_k) = \frac{1}{2\pi|\Sigma_k|^{1/2}} \exp\left( -\frac{1}{2}(x - \mu_k)^T \Sigma_k^{-1} (x - \mu_k) \right)

Interpretation: High probability where points are dense, low where sparse

A transformed source point “scores” high if it lands near a cell’s mean

NDT Alignment

The NDT Cost Function

Given transformation parameters T=(θ,tx,ty)T = (\theta, t_x, t_y):

L(T)=−∑i=1nlogp(T(pi)) L(T) = -\sum_{i=1}^{n} \log p\left( T(p_i) \right)

Equivalently (dropping constants): L(T)=∑i=1n(T(pi)−μk(i))TΣk(i)−1(T(pi)−μk(i)) L(T) = \sum_{i=1}^{n} (T(p_i) - \mu_{k(i)})^T \Sigma_{k(i)}^{-1} (T(p_i) - \mu_{k(i)})

where k(i)k(i) is the cell containing transformed point T(pi)T(p_i)

Cost Function Properties

Smooth within each cell: Quadratic in transformation parameters

Discontinuous at cell boundaries: Cell assignment changes

Solution:

  • Use larger cells (smoother but less precise)
  • Or use overlapping grids
  • Or use soft cell assignment

NDT Algorithm: Pseudocode

Input: Source points P, NDT of target (cells with μ, Σ)
Output: Transformation T = (θ, tx, ty)

Initialize T = (0, 0, 0)
repeat:
    # Transform source points
    P' = apply T to P

    # Compute cost and gradient
    L = 0, ∇L = 0
    for each p' in P':
        cell = find_cell(p')
        if cell is occupied:
            L += Mahalanobis_distance(p', μ_cell, Σ_cell)
            ∇L += gradient_contribution(p', μ_cell, Σ_cell)

    # Update transformation (gradient descent or Newton)
    T = T - α * ∇L  (or Newton step)

until convergence
return T

Computing the Gradient

For a single point pp transformed to p′=R(θ)p+tp' = R(\theta)p + t:

∂L∂θ,∂L∂tx,∂L∂ty \frac{\partial L}{\partial \theta}, \quad \frac{\partial L}{\partial t_x}, \quad \frac{\partial L}{\partial t_y}

Chain rule: Need derivatives of:

  1. Mahalanobis distance w.r.t. p′p'
  2. Transformed point p′p' w.r.t. parameters (θ,tx,ty)(\theta, t_x, t_y)

Gradient Derivation

Let d=p′−μd = p' - \mu and cost term c=dTΣ−1dc = d^T \Sigma^{-1} d

Gradient w.r.t. p′p': ∂c∂p′=2Σ−1d \frac{\partial c}{\partial p'} = 2 \Sigma^{-1} d

Jacobian of transformation: ∂p′∂(θ,tx,ty)=[−xsinθ−ycosθ10xcosθ−ysinθ01]T \frac{\partial p'}{\partial (\theta, t_x, t_y)} = \begin{bmatrix} -x\sin\theta - y\cos\theta & 1 & 0 \\ x\cos\theta - y\sin\theta & 0 & 1 \end{bmatrix}^T

NDT Implementation

def rotation_matrix(theta):
    c, s = np.cos(theta), np.sin(theta)
    return np.array([[c, -s], [s, c]])

def transform_points(theta, t, points):
    """Apply transformation to points (2 x N)."""
    R = rotation_matrix(theta)
    return R @ points + t.reshape(2, 1)

def ndt_cost_and_gradient(params, source, ndt, cell_size, x_range, y_range):
    """Compute NDT cost and gradient."""
    theta, tx, ty = params
    t = np.array([tx, ty])

    # Transform source
    transformed = transform_points(theta, t, source)

    cost = 0.0
    grad = np.zeros(3)  # [d/dtheta, d/dtx, d/dty]

    for i in range(source.shape[1]):
        p = source[:, i]
        p_trans = transformed[:, i]

        # Find cell
        cx = int(np.floor((p_trans[0] - x_range[0]) / cell_size))
        cy = int(np.floor((p_trans[1] - y_range[0]) / cell_size))
        key = (cx, cy)

        if key in ndt:
            mu = ndt[key]['mean']
            cov_inv = np.linalg.inv(ndt[key]['cov'])

            d = p_trans - mu
            cost += d @ cov_inv @ d

            # Gradient
            grad_p = 2 * cov_inv @ d

            # Jacobian of transformation
            c, s = np.cos(theta), np.sin(theta)
            dp_dtheta = np.array([-p[0]*s - p[1]*c, p[0]*c - p[1]*s])

            grad[0] += grad_p @ dp_dtheta
            grad[1] += grad_p[0]
            grad[2] += grad_p[1]

    return cost, grad

NDT Optimization

def ndt_align(source, ndt, cell_size, x_range, y_range,
              max_iters=100, lr=0.01, tol=1e-6):
    """Align source to target using NDT."""
    params = np.array([0.0, 0.0, 0.0])  # theta, tx, ty
    costs = []

    for _ in range(max_iters):
        cost, grad = ndt_cost_and_gradient(
            params, source, ndt, cell_size, x_range, y_range)
        costs.append(cost)

        # Gradient descent with adaptive step size
        step = lr * grad / (np.linalg.norm(grad) + 1e-8)
        params = params - step

        if len(costs) > 1 and abs(costs[-2] - costs[-1]) < tol:
            break

    return params, costs

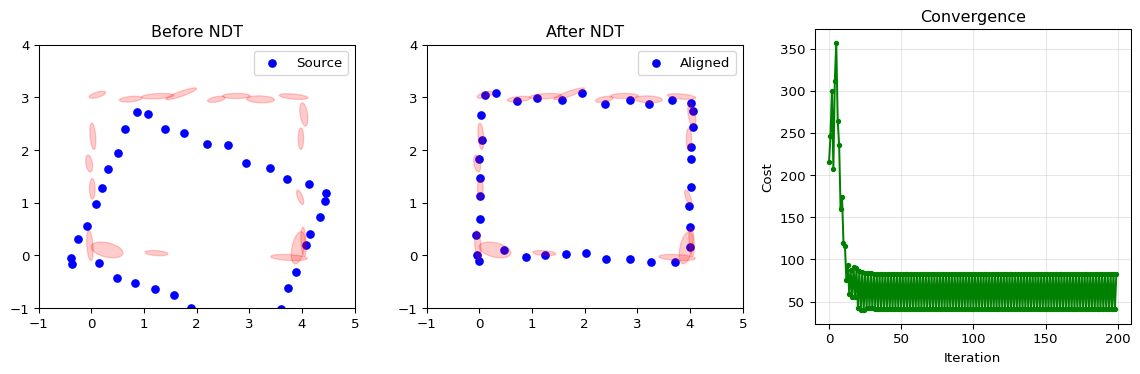

NDT Demo

Code
np.random.seed(42)

# Create source (subset of target, transformed)
source_base = target[:, ::3].copy()  # Subsample
true_theta = np.pi / 8
true_t = np.array([0.3, 0.2])
source = rotation_matrix(-true_theta) @ (source_base - true_t.reshape(2, 1))

# Run NDT alignment
params_est, costs = ndt_align(source, ndt, cell_size, (-0.5, 4.5), (-0.5, 3.5),
                              max_iters=200, lr=0.05)

# Apply estimated transformation
aligned = transform_points(params_est[0], params_est[1:], source)

fig, axes = plt.subplots(1, 3, figsize=(12, 4))

# Before
axes[0].scatter(source[0], source[1], c='blue', s=30, label='Source')
for key, cell in ndt.items():
    draw_ellipse(axes[0], cell['mean'], cell['cov'], n_std=1.5,
                 fill=True, alpha=0.2, color='red', edgecolor='red')
axes[0].set_title('Before NDT'); axes[0].legend()
axes[0].set_xlim(-1, 5); axes[0].set_ylim(-1, 4); axes[0].set_aspect('equal')

# After
axes[1].scatter(aligned[0], aligned[1], c='blue', s=30, label='Aligned')
for key, cell in ndt.items():
    draw_ellipse(axes[1], cell['mean'], cell['cov'], n_std=1.5,
                 fill=True, alpha=0.2, color='red', edgecolor='red')
axes[1].set_title('After NDT'); axes[1].legend()
axes[1].set_xlim(-1, 5); axes[1].set_ylim(-1, 4); axes[1].set_aspect('equal')

# Convergence
axes[2].plot(costs, 'g-o', markersize=3)
axes[2].set_xlabel('Iteration'); axes[2].set_ylabel('Cost')
axes[2].set_title('Convergence'); axes[2].grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print(f"True: θ={np.degrees(true_theta):.1f}°, t={true_t}")
print(f"Est:  θ={np.degrees(params_est[0]):.1f}°, t={params_est[1:].round(3)}")
True: θ=22.5°, t=[0.3 0.2]
Est:  θ=21.0°, t=[0.281 0.189]

Comparison: NDT vs ICP

Side-by-Side Comparison

Aspect ICP NDT
Target representation Point cloud Gaussian grid
Correspondence Explicit (nearest neighbor) Implicit (cell lookup)
Cost function Sum of distances Log-likelihood
Smoothness Discontinuous Smooth within cells
Computation O(nlogm)O(n \log m) per iteration O(n)O(n) per iteration

When to Use Each

Use ICP when:

  • High accuracy needed
  • Good initialization available
  • Computational resources available

Use NDT when:

  • Fast alignment needed
  • Large point clouds
  • Coarse-to-fine strategy

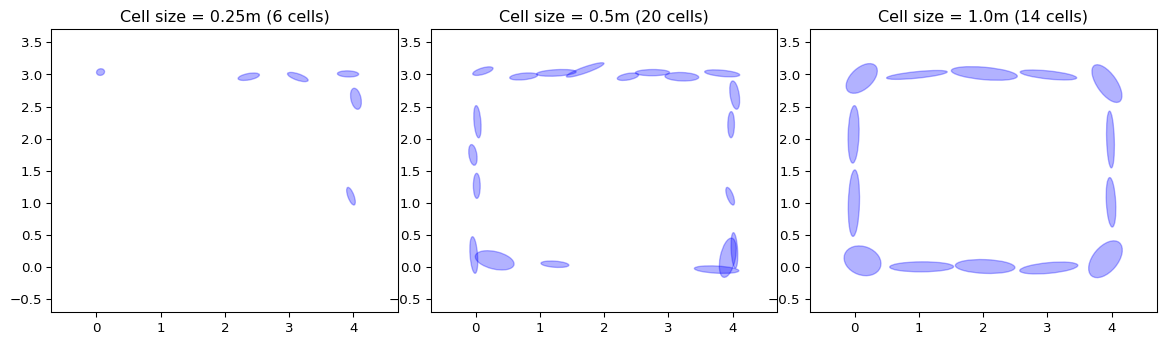

Cell Size Trade-off

Code
fig, axes = plt.subplots(1, 3, figsize=(12, 4))
cell_sizes = [0.25, 0.5, 1.0]

for ax, cs in zip(axes, cell_sizes):
    ndt_temp = compute_ndt(target, cs, (-0.5, 4.5), (-0.5, 3.5))

    for key, cell in ndt_temp.items():
        draw_ellipse(ax, cell['mean'], cell['cov'], n_std=1.5,
                     fill=True, alpha=0.3, color='blue', edgecolor='blue')

    ax.set_xlim(-0.7, 4.7); ax.set_ylim(-0.7, 3.7)
    ax.set_aspect('equal')
    ax.set_title(f'Cell size = {cs}m ({len(ndt_temp)} cells)')

plt.tight_layout()
plt.show()

Small cells: More accurate, but more discontinuities

Large cells: Smoother, but less precise

Multi-Resolution NDT

Strategy: Start coarse, refine progressively

  1. Large cells → rough alignment
  2. Medium cells → better alignment
  3. Small cells → fine alignment

Each stage initializes from previous result

Handling Outliers

Both ICP and NDT are sensitive to outliers

NDT approach: Points in empty cells contribute zero to cost

  • Acts as implicit outlier rejection
  • Points without nearby target structure are ignored

Additional strategies:

  • Threshold Mahalanobis distance
  • Use robust cost functions (Huber, Cauchy)

Practical Considerations

Grid alignment matters:

  • Axis-aligned grids can miss diagonal features
  • Solution: Use multiple rotated grids or octrees

Numerical stability:

  • Covariance matrices can be singular (collinear points)
  • Add small regularization: Σ←Σ+ϵI\Sigma \leftarrow \Sigma + \epsilon I

Boundary effects:

  • Points near cell boundaries experience discontinuities
  • Solution: Overlapping grids or interpolation

Summary

  1. NDT representation: Grid of Gaussians captures local structure
  2. Smooth cost function: Enables gradient-based optimization
  3. Fast alignment: O(n)O(n) per iteration vs O(nlogm)O(n \log m) for ICP
  4. Cell size trade-off: Smoothness vs precision
  5. Multi-resolution: Coarse-to-fine for robustness

NDT is particularly useful for real-time applications with large point clouds

References

  • Biber, P., & Strasser, W. (2003). The normal distributions transform: A new approach to laser scan matching. IROS.
  • Magnusson, M. (2009). The three-dimensional normal-distributions transform. PhD thesis.
  • Segal, A., Haehnel, D., & Thrun, S. (2009). Generalized-ICP. RSS.

For the assignment: You may implement either ICP, NDT, or compare both!
